Bang, and the bolt is gone!

There are some who swear that the best and fastest way to remove seized nuts and bolts on a Land Rover, is to use an angle grinder, and then just replace the bolts afterwards.

I say nope. Use the right tools and most of the time the fasteners will free up.

Don’t use the angle grinder as your ‘go to‘ fix it all…

Especially if the bolts are holding on the fuel tank and are covered in fuel, and the metal they are bolted through is also saturated in fuel…


Sure, the angle grinder *will* remove the bolt, but it will also, vigorously, remove the fuel tank, most of the rest of the vehicle (from itself), sections of garage and garden, limbs and most definitely any body hair.

Advertisements

Watch “FRANK LIVES!!!” on YouTube

It’s taken 18 months of an hour here, an hour there, but finally Frank the Tank has blown the dust out of his figurative lungs and grumbled into life.

Me and a few friends pulled him apart primarily to fix a broken ring gear, but then additional tweaks were carried out. Purely functional ones, like the new manifold and stainless exhaust system, and new hand brake.

A little bit still to do (obviously!), but this was a great day!


Very Coincidental Land Rovering

Very weird day.

We’ve had brake issues in the Series 3 Landy. So, new drums, shoes, slave & master cylinders were fitted.

A binding problem was then causing trouble in reverse, so last night at a weekly engineering evening with good friends, the drums were removed & the problem investigated. Turns out some shoe adhesive was on the shoe face, causing a very slight ‘grab’ of the trailing shoe, which then pulled on tight like a ratchet as more rear moment was put on it.

A hand file to increase chamfers & a clean up has reduced the problem now.

The really odd thing though is that I took a trip today with Christine and Alex. It was a trip to Woking to let Alex spend some of his Christmas money on model making gear at Toys R Us. We’d never shopped in Woking before…

Whilst there I also brought a new waterproof coat in a shop sale in the spur of the moment. I needed one, and the sale one was greatly reduced. Chris waited with Alex outside the shop on a bench.

When I went to join her I saw an elderly gent sat next to her, and they were having a happy discussion about something.

I introduced myself & he made a joke apology about talking with my wife about Land Rovers…

It appears they had sat next to him, and Alex was looking in a closed down shop window and Chris commented that it just had shelves in, and joking said no-one would just buy shelves.

The old chap chipped in and said that he knew of a place that just sold screws and fittings… in metric and imperial sizes.

Chris replied that a shop like that would have been useful this week, as we needed some old imperial sized nuts and bolts.

The man then asked, after assuming it was for a car, what the car was.

Chris replied it was for an old Land Rover… and then they got chatting about Land Rovers… and it was at this point that I turned up.


I then chatted with him about our old Land Rover and recent issues, as he was very well informed about the mechanics involved.

It turns out that the chap, called John, was Dunsfold Land Rover Collection’s mechanic up until he retired.

This in itself was a fantastic coincidence! I took the opportunity to discus the brakes and he said the rectification actions we were implementing sounded just right.

Then he goes and asks if I have the Haynes Series I,II,III Restoration manual.

I replied that I did… and he then explained that he is the only person to have had his belly mentioned (by name!) in a Haynes Manual, as a workshop ‘must have’ tool. To top it off, the section that his belly is mentioned in, is slap bang in the middle if the brake overhaul section…


A really nice chap, and such a coincidence to meet him in a place we’ve never been before, due to a chance visit to a shop sale, a conversation about shelves, nuts and bolts that lead to Land Rovers and then finding out that all the work we’ve done this week links up with the work he used to do… and his belly is famous for!


Goodwood Breakfast Club November 2011…

Goodwood Breakfast Club November 2011… Mostly 4×4 trucks, sports, classics… & our Landy. PHOTOS HERE.

This was our Series Land Rover’s first time on the Goodwood Circuit for all to see…. and old Frank got a lot of interest. I was surprised at how many people stopped to look over the 1977 88″ Landy, and how many questions people had.

It made our day that ‘he‘ had so much attention and praise… and many photo’s taken!


Tilford Rural Life Centre – Land Rover Day 2011

We took Frank our Land Rover Series 3 to the Tilford Rural Life Centre Land Rover Day (just in-case the blog title didn’t give it away).

Photos HERE.

It was a meeting for all types of Land Rover – and there were some fantastic examples to be seen, but Land Rovers aside, the centre has some really fantastic exhibits to see. The Eashing Chapel and the schoolhouse really stood out, but the whole site is crying out for another visit soon.

A play park and working light railway gave Alex some energy release, but he really liked seeing the old farm tools, prefab homes, tools and school house. One of his favourite places was an old cottage that had NO T.V IN IT! He thought it was brilliant!

CLICK TO SEE INTERACTIVE PHOTO

The whole event was really friendly with a great bunch of people. If you needed anything all you had to do was ask – be it ideas, tools, fixes, help with Landy things – you could ask anyone. In fact we spotted one Series III Fire Tender with one of its tyres going down (I have a story about tyre problems and Land Rovers, but that’s for later). Being a Fire Tender it didn’t carry a spare tyre (they operate so close to their stations it was not deemed a requirement, so more room could be put over to fire fighting equipment).

The owner had a spare wheel brought to the site, but had no jack or tools, after all, it didn’t have a spare, so didn’t need the tools. I retrieved my two jacks (a new bottle jack and genuine 70’s Land Rover worm screw jack), but the tender was sitting too low on the flat tyre – and it had water in – and it was on softish ground…. so along came other owners with tools and help.

A group of total strangers helped get the Land Rover tender up, change the tyre and not one of us were asked for help, we just did it. Meanwhile at a church near where I live, some ‘do-right‘ parishioners were getting sweary over a parking space they both wanted. Make of that what you want. Church of Land Rover for the WIN.


A Balanced Plea to Land Rover

An appeal to the heads of Land Rover…. For their sakes and ours I hope they listen.

Regarding the Defender DC100 concept for release in 2015

(Please share this around).

Spanners & Hammers

We all use them. They are tools. They do what they have to do, and they do it well.

Time moves on… things change…. but besides the smallest of tweaks, the hammer & spanner remain the same. Sure, socket sets joined the party… but spanners & hammers stayed. Tools do what they do & that’s all we ask.

The Series is our vehicular spanner or hammer. The Defender is the socket set.

No alteration needed.

It already does the job.

Stand by your product

You (Land Rover) want to be brave & bold among car manufactures in 2015?

Then don’t change a thing and STAND OUT by standing next to a product that needs no introduction, no fanfare, no design guru and NO CHANGE, because it’s fine the way it is.

You notice the people who like the DC are few & far between, and young.

The people who USE Land Rovers & have EXPERIENCE have spoken out against it…. and I’d bet those young inexperienced DC ‘likers’ would sing out against it if they had a clue about how the Defenders really get used.

The DC100 sounds great on paper. Hell, it might even work really well (I’m sure it will)… and it does have a certain look to it that stands out… but I’m sure you’ve gathered by now that our blunt stick Defender is much preferred to the gaudy disco ball DC100.

Yes, you may have a market for it, and your research might have come up with a customer base for this new model… but it’s not the Defender customer base that need the Defender type of car. It’s the cool brigade. With sunglasses and fake tans.

Run the two together, but don’t lose the Defender work horse just to keep up with fashion & iPhone cool.

Very tough to replace

You say that coming up with a replacement for the Defender was one of the toughest things you’ve had to do….

…. but did you ask yourselves ‘why is it so tough to replace?’…

It’s because you’ve already got it right.

Back to the spanners and hammers…. You don’t need improve on something that ALREADY WORKS!

You are like kids in an all you can eat restaurant ~ Just because you have the ability to have everything, it doesn’t mean you should….

Now please, just say that you’ve heard our feedback, and that you weren’t so aware as to how much people really want to keep the current Defender, and that you are strong enough to see that you don’t need to change it after all.

Now THAT I’d respect.

Brand Identity

A Range Rover is a Range Rover.

A Discovery is a Discovery.

A Freelander is a Freelander.

They have variations, but they get lumped under their main name….

Yet say Land Rover & people relate to the classic box, covering Series, County, Defenders… These are Land Rovers.

The DC100 is not this Land Rover, let alone a Defender. It is different… new… not a continuation of a line.

The Friendly Wave

If the action man, tarts handbag, swatch watch DC100 is made, I don’t think it’ll receive the same friendly hand signal from other drivers as they pass.

They’ll probably still get a hand signal though….

Serious Flaw

The DC100 has a very serious flaw.

From it’s sloped bonnet, to the curved and angled roof… to the lack of a sticky out bumper… you have removed a primary function of the Defender & Series type Land Rovers.

There is nowhere to place your mug of tea, or park your backside when working on it…

Now this is bad for individuals, but Landies are also a good social vehicle, and that’s going to end up with a group of people standing around a scratched bonnet DC100 with broken mugs on the ground.

Aftermarket failings

The old Land Rover owners have a huge choice of aftermarket spares and add-on parts at their finger tips. They can raid the parts bin and find items that will fit almost the entire range of Series, County and Defender type vehicles.

This means parts are cheap and plentiful… and pretty easy to fit… and that means the Landies can be kept on the road at low cost and a chunk of the work can be done by the owner.

The DC100 has ‘Defender’ written on the side…. but that is where it ends (and also the only thing that links it to its heritage).

No longer will you have the parts interchangeability. This puts spares prices up… and means you’ll also probably have to go to a main dealer to get the thing fixed.

Be individual like everyone else

It’s almost as if Land Rover have decided that they want it all to themselves, and that if you want to personalise your DC100, then you can have it any way you want, as long as it is on their specification tick sheet…..

Yup… like all those individuals in their new Mini’s and Beetles with individual paint schemes… that look just like the other people who chose the same specification.

Help… I’ve broken down

Stuck in the middle of the jungle with nothing but the contents of your boot and a knife?

The older the Land Rover, the easier it is to get home safely. They will run and run even when things are failing and falling off…. Your Landy will get you home.

Okay… so the DC100 has some very cool gadgets which will mean idiots will have the ability to think they can go anywhere because they have a Land Rover (I see many of these idiots stuck in the snow because they have no clue how to drive, even with the right tools).

The gadgets all rely on computers… and in the name of safety you can pretty much be sure that if something goes wrong you will get a warning light come up and the engine will automatically cut out…. and you now need to get the AA or other breakdown service to take you to a Land Rover approved garage to be plugged into a computer to get reset and fault diagnosed.

You show me an approved Land Rover dealer in the middle of the bloody jungle…. let alone a vehicle recovery service who will come out and honour their ‘get you home’ policy from some deep dark uninhabited swamp land…

Even if you can override the computers you’ll be stuck…. After all, everything is computer controlled…

We want simplicity Land Rover… Even the current Defender is a bit too techy for our liking… but it works.

Plea

The DC100 is a great showcase of what you can do. Very much like the other companies who produce outlandish concept ideas to show various new bits of technology…. but never actually put the vehicle into production. It’s a proof of concept… It’s showing off your skills… It’s what you can do… not what you have to do…

You are geniuses! You’re styling department puts out some eye popping designs.

… but we still want our old Defender in that line up.

The big uproar is the future demise of the Defender as we know it. The DC100 being a death knoll on a line of OBVIOUS family heritage… The simple go anywhere vehicle.

I think had the new Land Rover been released as a stable mate, rather than replacement, then there would have been riotous support for it.

Yes…. Try this for size…

“The new Land Rover DC100 Overlander ~ The future of off roading…. (P.S… you can still have your Defenders folks….)”

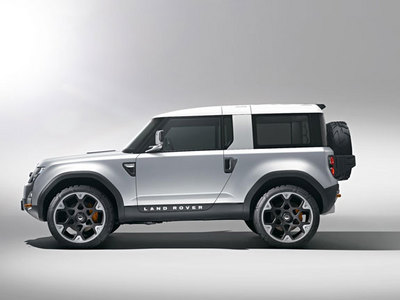

New Land Rover ‘Defender’ revealed

It’s a sad day if this is how the Defender replacement is going to turn out.

Really glad that we brought a Series 3… and by Hell are we going to keep it if the DC 100 is the future….

According to FunRover.com

This is a preview of the vehicle which is planned for release, according to FT, in 2015. Land Rover’s Design Director, Gerry McGovern says that it’s not the finished vehicle, but rather, the start of a 4 year journey to design a ‘relevant Defender for the 21st-Century’…

I’m sorry, but the beauty of the box, from Series 1 to the latest Defender… a family line (and interchangeability) has made the Land Rover one of the very last true iconic cars on the UK roads… and one of, if not THE last true iconic UK car on foreign soil, so I hope you’ll forgive me when I say that the released photo of the DC 100 leaves me greatly saddened.

I seriously hope that this is a ‘way out’ concept, and that the final design is more in keeping with the REAL Land Rover shape – which to me, and to countless other people, is a huge part of the Land Rover heritage.

This new DC 100 is just a fat version of the Japanese Nissan Cube… and you don’t even have to squint to see the similarities.

DC 100 (top). Nissan Cube (bottom)... I think.

If you MUST go this way Land Rover, then can I suggest that you also bring out some simpler, more basic utilitarian models that still have interchangeability of parts, simple nut & bolt maintenance and retain the classic box shape. Maybe call it the Series 4, or to be cool, the SX, because X is cool, isn’t it?

This DC100 looks too curvy & aimed at a softer crowd than the current Defender and the older Counties and Series before. This new shape will just make people buy similar looking Japanese pick-ups, after all it looks like that’s where it’s from (design wise).

People put a lot of faith in the familiar Land Rover box shape, regardless of what is good or bad under the hood. By losing the old faithful image of a tough, established work horse, you’re going to loose followers. Other companies would give their off spring away to get such a visual branding as the old box…. I can’t see it as anything other than a bad move.

By all means, make the DC100, but badge it as Discovery X or something and keep the Defender simple, boxy & utilitarian.

We like to mess around with generic bolt on parts & make OUR Land Rovers that bit individual, to suit OUR purposes… and there’s a HUGE range of after market bolt ons & spares that we use across the Series ~ Defender range.

By coming out with a totally new design (which is only recognisable as a Defender because YOU told us…), you take ALL of that away from us.

On that matter… The new Beetle, Mini & Fiat 500… even Morgan & Citroën 2CV concept… are all recognisable as modern incarnations of their original models. The DC100 fails at even that. It looks more like a more focused Disco/Freelander clone with no hint of the heritage we’ve grown to trust.


A Pointless Exercise

In which I try to explain things that you can’t see, and I fit a new ignition thing to the 1977 Land Rover…

Go straight to the ‘how to’ guide HERE.

Christine was driving with Alex (now 5 years old) when the old Series 3 Land Rover decided to breakdown at the side of the M3 motorway, junction 6….

The points had failed…

“Points?” –  you might ask… Well hold on – I’ll try to give a simple explanation of what they are, and how you can put something in place that’ll avoid some of the issues you get with a ‘Points Ignition’ system.

Older car engines mainly use a really simple electromechanical ignition system. Very basically an electric charge is sent to a distributor which then ‘distributes’ this electricity to each of the engines spark plugs – in the right order and at the right time.

There is a good write-up in more depth HERE.

This has to be set up so that the sparks fire off at the right time. If the sparks fire off too soon or too late then the engine will run really poorly… or not at all. A great deal of this set up is based on gaps and sparks and electricity zapping across between bits of metal at the right time.

Where sparks occur, you will get erosion, so these gaps get slowly bigger as the sparks wear away the metal, and the engine starts to falter. Some of these gaps are designed to open and close (like a switch) as the engine runs. Where sparking bits of metal touch you will find that the metal bits can end up welding/sticking to each other… and that means the engine won’t run because the switch has stuck…

The ‘switch’ is a major component in the ignition system – and is known as a contact breaker or ‘the points‘. The points are the bits at one end of the contact breaker that open and close to allow the electricity to do its stuff… or not… on/off/on/off etc…

Adapted by L.Black from original Wiki image by Frédéric MICHEL. Click image to go to Wiki 'Ignition' pages.

In this video you can see the metal arm going up and down causing a small spark at the end. It’s this opening and closing part that can weld and stick shut. It is totally manic in here as the engine is running, with the points opening, closing and sparking thousands of times per minute, so you can see why they are very prone to wearing out. (Note: The big spark to the top right represents the engine spark plug).

You would often find that if your car broke down on a journey and you had to call a breakdown truck, the breakdown truck driver would be able to swap out a set of points at the side of the road to get you motoring again – or at least he’d be able to un-stick the points and set them up to get you home or to a garage where they could be replaced. They are really simple and pretty easy to work with…. not like the modern electronic computer controlled units…. If they go wrong, then you are likely to be towed home and then face a big garage bill…

To make setting the ignition timing up easier, and to avoid points wearing out and ending up stuck at the side of a busy motorway (as happened to my wife and our little 5 year old lad in our Land Rover) there are several solutions.

There are many electronic conversion kits available that remove the contact breaker/points, although some require lots of work and cost quite a bit of cash. Some swap out entire chunks of your ignition system with new parts. They pretty much all do the same thing in the end though, so rather than going down this route I was suggested by a good friend a way can be done cheaply if you have a little bit of sense and some very basic tools.

I checked. I had a little bit of sense and basic tools…. so I looked into his recommended route…

There is a ‘pointless’ module that can fit straight into where the original points unit sat. It is a very simple module that uses the Hall effect to trigger the electrical signal to the spark plugs, rather than using points (this is too much information, but there if you want to confuse yourself)

Contact Breaker/Points unit (left) and 'Pointless' module (right)

Very simply put: 4 magnets in a black plastic ring (the trigger) spin and as they pass the red electronic ‘pointless’ module, the module releases bursts of electricity. There are no switches or parts touching each other, so there is nothing that can wear out or weld/stick together. Also this means setting the timing doesn’t require having to reset the point gap if you rotate the distributor  – because there are no gaps to set… in fact there is nothing to adjust as it can only attach in one place.

From this video you can see the spark to the top right that represents the feed to the engine spark plugs… but there are no points or touching parts in the unit itself. It’s like magic or something…

Fitting ‘Pointless’ Ignition

An idiots guide…

Yes, the part came with instructions… but they were slightly incorrect in my case, so I figure an easy to use photo guide would help some people. Our old Landy has a Lucas 45D type distributor.

The module I chose is a Britpart component from MM-4×4.com I purchased for £12.75 (at time of writing). The first module they supplied to me had a manufacturing fault, so MM-4×4 replaced it. These things happen, but the customer service was fast and great, so no harm done.

  • All I really needed was a flat blade screwdriver and cross point screwdriver (No.2 size) (Or use one screwdriver with interchangeable heads…!).
  • The large screwdriver and 11mm spanner are for tweaking timing if required AFTER fitting the module.
  • The kit came with the module, an all in one rotor/trigger and a separate trigger (depending on your distributor type) all the required wires, coil tab (if required), cable tie, grease.

Parts and Tools

  • Loosen the small brass ‘wing nut’ on top of the air filter clamp and move the air filter to one side. This gives better access.
  • Don’t let the filter touch the battery terminals though…. unless you need waking up…

Move the air filter

  • Attach the supplied (red) wire to the coil. It should only fit one way due to the end fitting.

The coil

  • Un-clip the top of the distributor. (Leave all the spark plug leads plugged in, they don’t need to be touched).
  • Remove the black central rotor (the bit with the brass strip on top – It pulls straight up and off).
  • Disconnect the contact breakers black wire from the black extension wire that comes down from the coil.
  • Remove the old contact breaker and condenser (the little metal cylinder to the right).
  • Keep the screws safe – you’ll need them again. (Leave the wire that was attached to the condenser screw – you’ll attach this end again later).
  • Lift the old contact breaker and condenser out of the distributor and pull the black wire carefully out through the distributor body as you do so. (It is worth keeping this unit safe in the car somewhere, just in case you break down and need to fit it…. You probably will never need it, but hey, it doesn’t take up any weight or much space!).

Undo the old fixing screws, remove the central rotor.

  •  Use the supplied white grease and coat the base of the new module. This makes sure it has a good contact with the distributor body.
  • Using the screws removed earlier, fit the module into the distributor body.
  • NOTE: Don’t forget to refit that wire that used to be on the condenser (under the cross head screw).

Splash it all over

  • Select the new supplied combined black rotor and trigger assembly (on the right in the photo below).

Choices...

  • Feed the black and red wires through the hole in the side of the distributor.
  • Connect the black and red wires up to the red and black wires coming down from the coil. They should only fit one way – red to red, black to black – (see note 1 in the photo below).
  • NOTE: The supplied instructions state to fit the new trigger (the black plastic ring) to the distributor, and refit the OLD rotor arm (the black plastic thing with the brass strip on top – Left on the photo above).
  • This DID NOT work for our Land Rover (the vehicle totally failed to start).
  • Instead, fit the combined rotor and trigger part into the distributor (the part on the RIGHT in the photo above).
  • Make sure the lugs line up. (see note 2 in the photo below).

Putting it together...

  • You are almost done….
  • Make sure that the red and black wire have some slack in the distributor body. Pretty much make it look like the photo below, otherwise the wires can pull tight or foul the units operation when the engine is running.

That's the internals done

  • Clip the cap back on securely – Make sure you don’t trap and of the wires.
  • Double check that the black wire goes to the black wire, and the red to the red.
  • Make sure the red and black wires are secure on the coil.

Ready yet?..... Yup!

  • Now, you could drop the air filter back in place and tighten the brass wing nut up BEFORE trying to run the engine…. or you could now to run the engine, make sure it works, and THEN put the air filter back in place… It’s up to you!

Does it run?

From what I understand, and from ALL the data I have found on the internet, the part should just drop into place and bingo, job done. Nothing to set up and it should run straight away.

If it doesn’t, try re-checking all of your connections, wires and spark plug leads (you might have dislodged something). If it still doesn’t work you could try removing the rotor and fitting the supplied trigger (the black ring) and fitting the OLD rotor on top of that.

Failing that, maybe drop me an email or message via this blog and I’ll see if I can help.

11mm spanner and big screwdriver?

You might have been wondering what that was for. Well, lower down the distributor body (just below the catches that hold the cap on) there is a nut and bolt (a pinch bolt) that allows the distributor to be rotated to advance/retard the engine timing.

A bit more info HERE.

Very, very basically – This changes when the distributor sends the spark to the spark plugs – and therefore when it ignites the fuel in the engine. Too soon or too late can effect performance and economy – and damage the engine.

Our Landy (and for all I know, all early Landies) can be set reasonably well by just using the charge light on the dashboard as a guide.

If the engine ticks over and the light is on, or flickering, then you have too low an idle speed.

From what I have learnt the best thing is for the engine tick over (once warmed up) to be just fast enough to not have the charge light illuminate or flicker.

So…

  • Run your engine until it is at normal operating temperature (about midway on your temperature gauge).
  • Turn your engine off and carefully (it is HOT now), loosen the distributor pinch bolt. Just enough so that the distributor can be rotated.
  • Turn the engine ON again and let it run.
  • Wear insulated gloves to rotate the distributor so the engine slows until the charge light flickers or comes on.
  • Now rotate it the other way until the light just goes out.
  • Tighten up the pinch bolt.
  • Job done.

The reason you wear insulated gloves is because you don’t want to wet yourself, burn your hair off or kill yourself whilst touching the distributor, which is full of angry electricity that doesn’t mind giving a loving Landy owner a bastard kick last time I did it…. ahem….

I don’t actually use gloves myself, I use the LONG INSULATED HANDLED SCREWDRIVER to gently tap on the distributor cap catch lugs to carefully rotate the distributor clockwise or anti-clockwise. This way I can stay away from the HOT engine and easily get to the distributor without reaching over all of the engine components, wires, muck etc…

Safe....

Well, if that hasn’t confused you too much, I think I’m done!

If you have any comments/improvements or techniques you’d like to add, please feel free.


Are you starting something?

Ali (now 5 years old) thinks the local Halfords auto-parts ‘specialist‘ is a bit of an idiot. He’s not wrong….

Mind you, when it comes to cars, Alex is a total sponge for information (as mentioned in previous blog entries). He is very curious as to how things work, so when I had to swap the old ignition coil out and replace the leads he wanted to help.



One explanation to Alex as to how the ignition system works and we then drove off to get the parts. We visited a couple of places to get prices for parts before buying anything.

The first place we visited was Camberley Auto Factors, who are usually pretty good at understanding parts and cars, although sometimes they need a hand, but all in all, they know their general stuff.

The second place was Hellfords… sorry, I mean Halfords… the high-street seller of  overpriced parts to Joe Public and chavs/chavettes who want pink wheels and loud stereos. Once upon a time you could go there and get what you needed to keep your car on the road, but now all you can get are fluffy dice, fat penis compensating exhausts for poxy Citroen boy racer hatch backs and gaudy crap to sprinkle over your pimp mobile…. and the wrong windscreen wipers, regardless of what you ask for…

Generally Halfords (from my experience) is now staffed by people who couldn’t get into the fast food business because they didn’t have the required qualifications…. (Now and then you can get lucky and find a helpful member of staff… but they generally get better jobs and leave Halfords very quickly).

We got the prices from Camberley Auto Factors with no problem, then went to Halfords as a comparison.

I asked the PARTS COUNTER SPECIALIST  if they had an HT lead set for a Land Rover… to which the drone responded in a close approximation to English “Is dat summit to do wiv der stereo?

Alex just tutted and said loudly “Let’s go back to the other shop. THAT man knew what he was talking about…

Spanner? Errr... wassat?

Parts Specialists…? I should have known I was on to a loser with them, especially as last time I asked for a Series 3 Land Rover part, they responded with “Is that the Defender Rover or the Discovery Rover?“…. No, you arse-hats, it’s a SERIES 3…. just like I JUST SAID IT WAS!!!

So we went back to Camberley Auto Factors and picked up what we needed. Once we got home I put all the new parts in place with Ali’s help (and lots of questions about how THIS bit works, and WHY does THIS bit do THIS?). Next I needed to do a bit of tinkering with timing, so Alex ran around to the drivers seat and awaited my instructions….


Worried about safety? Well, he knows to check the car is in neutral before starting up…. but to be on the safe side I had selected neutral on the diff’ too, just in case he accidentally selected a drive gear (this way the car was never going to move with him in it). Ali started the engine up when I asked him, adjusted the choke and gave the engine some throttle when I asked for it. Yes, I could have done it on my own, but he wanted to help, and he made things easier for me.

Timing is nicely set now with the new coil and HT leads working well.

I’m one proud dad… although that’s mostly due to his slam down of the guy in Halfords…




A Land Rover Runs Through It

The A3 tunnel has now opened as part of the new Hindhead bypass. SEE HERE FOR DETAILS.

Alex wanted to drive through it after seeing it on the news, so we took the Land Rover for a trip under The Devil’s Punchbowl.

The tunnel is the longest road tunnel in the UK (at present) to not pass under water. It’s a pretty neat bit of engineering, and has a few facts (interest levels dependant on if you like tunnels….)

  • 963,959 cubic yards of earth was excavated during the tunnel’s construction
  • The fuel consumption rate of the excavators was 528 gallons of low-sulphur diesel per day
  • Digging the tunnel took 290,875 man-hours
  • 378,599 cubic yards of concrete were made
  • 1,399,034 man-hours were worked without an accident
  • The tunnel contains 156 miles of cable
  • The tunnel lights are twice as bright as the ones at the Old Trafford stadium
  • The tunnel has 104 CCTV cameras
  • The fire main tank can hold 8,358 gallons of water
  • 4,322 people worked on the project

(Info from Wiki page)




%d bloggers like this:
